Example 3: creating a row indicator
This example demonstrates the use of several functions: Bitmap, Case, CurrentRow, GetRow,
and RGB.
What you want to do
Using the Employee table in the Enterprise Application Sample
Database, you create a DataWindow object using the Emp_id,
Emp_fname, Emp_lname, and Salary columns.
In the painter, you want to display a number of items such
as the number of the current row, an arrow that is an indicator
of the current row, and the salary for an employee with a background
color that depends on what the salary is.
How to do it
In the workspace, add the following:
-
A computed field CurrentRow( ), which displays the
number of the current row. -
A picture object, which is a right-arrow, for which
you define an expression for the arrow’s visible property:1If(CurrentRow()= GetRow(), 1, 0)The expression causes an arrow to display in the current row
and no arrow to display in other rows. -
A computed field using the If, CurrentRow,
and GetRow functions:1If(CurrentRow() = GetRow(),"Current","Not current")displays the word “Current” when the row
is the current row and “Not current” for all other
rows. -
A computed field (typed on one line) using the Bitmap, CurrentRow,
and GetRow functions:1Bitmap(If(CurrentRow()= GetRow(), "c:samplexcodeindicatr.bmp", " "))displays an arrow bitmap for the current row and no bitmap
for all other rows. -
An expression for the Background.Color property
of the salary column:1Case(salary WHEN IS >60000 THEN RGB(192,192,192)1WHEN IS >40000 THEN RGB(0,255,0) ELSE<br>RGB(255,255,255))The expression causes a salary above $40,000 to display
in green, a salary above $60,000 to display in gray, and
all other salaries to display in white.
What you get

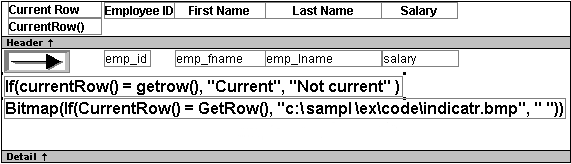

Here is what the design of the DataWindow object looks like:

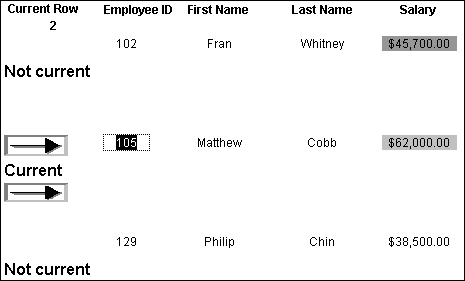

Here is what the data looks like with the second row current.
Notice that the number of the current row is 2; the first
row and the third row are “Not current” (and therefore display no
bitmap); and the second row, which is the current row, displays
the arrow row indicator.
On your screen, the salary in the first row has a green background
because it is more than $40,000; the salary in the second
row has a gray background because it is more than $60,000;
and the salary in the third row has a white background, which matches
the background of the DataWindow object.
