The PowerBuilder environment
When you start PowerBuilder for the first time, the Welcome
to PowerBuilder dialog box lets you create a new workspace with
or without targets:

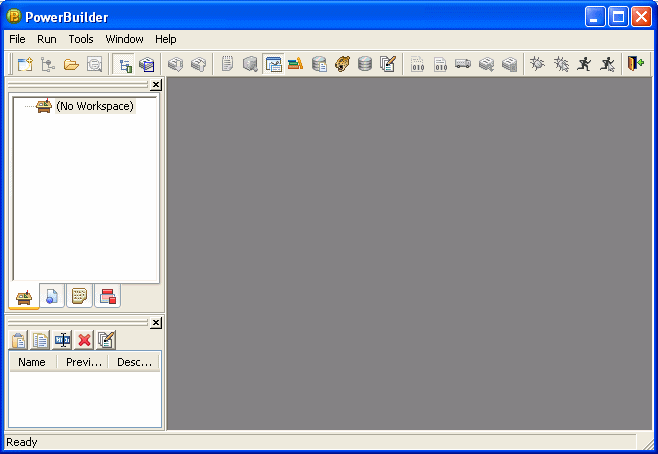

When PowerBuilder starts, it opens in a window that contains
a menu bar and the PowerBar at the top and the System Tree and Clip
window on the left. The remaining area will display the painters
and editors you open when you start working with objects.
The System Tree
The System Tree provides an active resource of programming
information you use while developing targets. It lets you not only get
information, but also drag objects into painter views (such as the
Script view, Layout view, and HTML editor) for immediate use.
| This tab | Displays this content |
|---|---|
| Workspace | Workspace contents—including targets, folders, files, and libraries |
| Page | The page components of the active page open in the HTML editor |
| Language | HTML tags, client and server-side object models (objects, properties, methods, and events), and JavaScript, and VBScript syntax elements |
| Components | ActiveX controls, Plugins, Java Applets, JavaBeans, EAServer hosts, and JSP custom tag libraries available to your target |
The System Tree displays by default when you start PowerBuilder
for the first time. You can hide or display the System Tree using
the System Tree button on the PowerBar or by selecting Window>System
Tree.
Using the Workspace tab page
The Workspace tab page in the System Tree displays the current
workspace and all its targets. PowerScript targets display the library
list for the target and all the objects in each PBL. Web targets display the contents
of the root folder of the Web target. The Workspace tab page in
the System Tree works like a tree view in the Library painter, but
you can keep it open all the time to serve as the control center
of the development environment.
As in the Library painter, you can set the root of the Workspace
page to your computer’s root directory, the current selection,
or any directory or library, as well as to the current workspace.
Working with targets To see the pop-up menu that lets you perform operations on
a target such as search, build, and migrate, you must set the root
of the System Tree or the view in the Library painter to the current
workspace.
The following illustration shows a workspace with two PowerScript
targets. The first PowerScript target, orders, has a second library
in its library search path.
You can use the Workspace page as the hub of your PowerBuilder
session. Pop-up menus let you build and deploy targets
and open and edit any object. The following table lists the actions
you can take on each item that displays on the Workspace page. You
can also set properties for each item, choose which object types
display in the tree view, change the root of the Workspace page, and
reset the root to the current workspace.
| Item | Menu action items |
|---|---|
| Workspace | New (opens New dialog box), Add Target, Open Workspace, Incremental Build, Full Build, Deploy, Debug, Run, Close, Show, Properties. |
| PowerScript target | New, Search, Incremental Build, Full Build, Migrate, Deploy, Debug, Run, Remove Target, Show, Properties. |
| Web or JSP target | New, New Folder, Import Files, Import Folder, Incremental Build, Full Build, Migrate Web, Deploy, Deploy to EP, Run, Remove Target, Show, Properties. |
| PBL | Delete, Remove Library, Search, Optimize, Print Directory, Build Runtime Library, Import, Import PB Extension, Show, Properties. |
| PBD | Remove Library, Show |
| PowerBuilder object | Edit, Edit Source, Inherit, Run/Preview, Copy, Move, Delete, Export, Regenerate, Search, Print, Properties. Edit Source is not available for project and proxy objects. Inherit |
| Functions and events | Properties.
The Properties dialog box shows the prototype of the function |
| Web target object | Edit, Rename, Delete, Build, Properties. |
Using the Page tab page
The Page tab page in the System Tree displays the Microsoft
Internet Explorer object model and hierarchy for the page currently
displayed in the HTML editor. This page is used only with Web targets.
The Page tab lists properties, methods, and events for the
following types of objects on your page:
- Predefined
HTML and JavaScript objects that are part of the IE object model - User-defined objects for which you have set a name
or ID attribute, such as forms and scripts
If you are developing a Web target For more information on using the System tree when you are
developing a Web target, see Working with Web and JSP
Targets
. The Page and Language tabs are relevant only when
you are developing a Web target.
Using the Language tab page
The Language tab page in the System Tree lists the language
elements available to Web targets:
- The HTML
elements and attributes defined in HTML Version 3.2, as well as
extensions to HTML defined by Microsoft and Netscape, organized alphabetically
and by category - Syntax and object models for the client- and server-side
scripting languages used by Web and JSP targets
Using the Components tab page
The Components tab page in the System Tree displays the ActiveX
controls, plugins, Java applets, and JavaBeans installed on your
system as well as the EAServer components
and JSP custom tag libraries accessible from your system.
The PowerBar
Like the System Tree, the PowerBar provides a main control
point for building PowerBuilder applications. From the PowerBar
you can create new objects and applications, open existing objects,
and debug and run the current application.
While you are getting
used to using PowerBuilder, you can display a label on each button
in a toolbar to remind you of its purpose. To do so, right-click
a toolbar button and select Show Text from the pop-up menu.
Table 1-2 lists
the buttons from left to right on the PowerBar.
| This PowerBar button | Lets you do this |
|---|---|
| New | Create new objects. |
| Inherit | Create new windows, user objects, and menus by inheriting from an existing object. |
| Open | Open existing objects. |
| Run/Preview | Run windows or preview DataWindows. |
| System Tree | Work in the System Tree window, which can serve as the hub of your development session. For more information see “The System Tree “. |
| Output Window | Examine the output of a variety of operations (migration, builds, deployment, project execution, object saves, and searches). See “The Output window”. |
| Next Error, Previous Error | Navigate through the Output window. |
| To-Do List | Keep track of development tasks you need to do for the current application and use links to get you quickly to the place where you complete the tasks. |
| Browser | View information about system objects and objects in your application, such as their properties, events, functions, and global variables, and copy, export, or print the information. |
| Clip Window | Store objects or code you use frequently. You can drag or copy items to the Clip window to be saved and then drag or copy these items to the appropriate painter view when you want to use them. See “The Clip window”. |
| Library | Manage your libraries using the Library painter. |
| DB Profile | Define and use named sets of parameters to connect to a particular database. |
| EAServer Profile | Define the connection parameters for a particular server. You can then use this predefined profile whenever you need to connect to EAServer. |
| Database | Maintain databases and database tables, control user access to databases, and manipulate data in databases using the Database painter. |
| Edit | Edit text files (such as source, resource, and initialization files) in the file editor. |
| Incremental Build Workspace | Update all the targets and objects in the workspace that have changed since the last build. |
| Full Build Workspace | Update all the targets and objects in the workspace. |
| Deploy Workspace | Deploy all the targets in the workspace. |
| Skip, Stop | Interrupt a build, deploy, or search operation. When a series of operations is in progress, such as a full deploy of the workspace, the Skip button lets you jump to the next operation. The Stop button cancels all operations. |
| Debug | Debug the last target you ran or debugged. You can set breakpoints and watch expressions, step through your code, examine and change variables during execution, and view the call stack and objects in memory. |
| Select & Debug | Select a target and open the Debugger. |
| Run | Run the last target you ran or debugged just as your users would run it. |
| Select & Run | Select a target and run it. |
| Exit | Close PowerBuilder. |
Customizing the PowerBar
You can customize the PowerBar. For example, you can choose
whether to move the PowerBar around, add buttons for operations
you perform frequently, and display text in the buttons.
For more information, see “Using toolbars”.
About PowerTips
In the PowerBar, when you leave the mouse pointer over a button
for a second or two, PowerBuilder displays a brief description of
the button, called a PowerTip. PowerTips
display in PowerBuilder wherever there are toolbar buttons.
The Clip window
You can store code fragments you use frequently in the Clip
window. You copy text to the Clip window to save it and then drag
or copy this text to the appropriate Script view or editor when
you want to use it.
Using the Clip window
The Clip window displays a list of named clips, a preview
of the information contained in the clip, and a description. It
provides buttons to move Clip window contents to the clipboard,
copy clipboard contents to the Clip window, rename a clip, delete
a clip, and modify the clip’s description. Clips you save in
one workspace are available in all your workspaces; you might want
to use a naming convention that reflects this.
For example, you might use standard error-checking code when
you use the ConnectToServer function to connect
to EAServer. To copy it
to the clipboard, highlight the code in a Script view and select
Copy from the pop-up menu. In the Clip window, click the Paste icon,
and name the clip. The Clip Description dialog box opens so that
you can enter a description. To change the description later, select
the clip’s name and click the Modify button.
You can drag a clip from the Clip window to any script in
which you want to connect to EAServer.
You can also use the Copy icon to copy the clip to the clipboard.
You can hide or display the Clip window using the Clip Window
button on the PowerBar or by selecting Window>Clip.
The Output window
The output of a variety of operations (migration, builds,
deployment, project execution, object saves, and searches) displays
in the Output window. You control operations in the window using
the Skip, Stop, Next Error, and Previous Error buttons or menu options.
You can hide or display the Output window by using the Output
button on the PowerBar or selecting Window>Output.
Using the Output window
When appropriate, lines in the Output window provide links
that invoke the correct painter when you double-click on that line.
The pop-up menu also provides the options Edit and Edit Source to
open an object in a painter or the Source editor.
