Sybase SQL Anywhere

This section describes how to prepare and define a Sybase SQL Anywhere data source in order
to connect to it using the SQL Anywhere
ODBC driver.

note.gif Name change For versions 6 through 9, the SQL Anywhere
database server was called Adaptive Server® Anywhere (ASA).

SQL Anywhere
includes two database servers—a personal database server
and a network database server. For information about using Sybase
SQL Anywhere, see the SQL Anywhere
documentation.

Supported versions for SQL Anywhere

The SQL Anywhere ODBC
driver supports connection to local and remote databases created
with the following:

  • PowerBuilder running on your
    computer
  • SQL Anywhere
    version 10.x
  • ASA version 9.x
  • ASA version 8.x
  • ASA version 7.x
  • ASA version 6.x
  • SQL Anywhere
    version 5.x

Basic software components for SQL Anywhere

Figure 2-5 shows
the basic software components required to connect to a SQL Anywhere data source in PowerBuilder.

Figure 2-5: Components of a SQL Anywhere connection


Preparing to use the SQL Anywhere data source

Before you define and connect to a SQL Anywhere
data source in PowerBuilder, follow these steps to prepare the data
source.

proc.gif To prepare a SQL Anywhere
data source:

  1. Make sure the database file for the SQL Anywhere data source already exists.
    You can create a new database by:

    • Launching the Create SQL Anywhere
      Database utility. You can access this utility from the Utilities
      folder for the ODBC interface in the Database profile or Database
      painter when PowerBuilder is running on your computer.
      This method creates a local SQL Anywhere
      database on your computer, and also creates the data source definition
      and database profile for this connection. (For instructions, see
      the User’s Guide
      .)
    • Creating the database some other way, such as with PowerBuilder running
      on another user’s computer or by using SQL Anywhere outside PowerBuilder.
      (For instructions, see the SQL Anywhere documentation.)

  2. Make sure you have the log file associated with
    the SQL Anywhere database so
    that you can fully recover the database if it becomes corrupted.

    If the log file for the SQL Anywhere
    database does not exist, the SQL Anywhere
    database engine creates it. However, if you are copying or moving
    a database from another computer or directory, you should copy or
    move the log file with it.

Defining the SQL Anywhere data source

When you create a local SQL Anywhere
database, PowerBuilder automatically creates the data source definition
and database profile for you. Therefore, you need only use the following
procedure to define a SQL Anywhere
data source when you want to access a SQL Anywhere
database not created using PowerBuilder on your computer.

proc.gif To define a SQL Anywhere
data source for the SQL Anywhere
driver:

  1. Select Create ODBC Data Source from the
    list of ODBC utilities in the Database Profiles dialog box or the
    Database painter.

  2. Select User Data Source and click Next.

  3. On the Create New Data Source page, select the SQL Anywhere driver and click Finish.

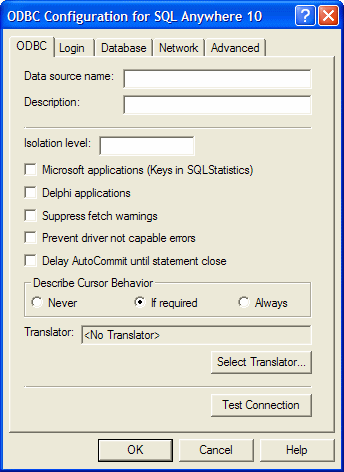

    The ODBC Configuration for SQL Anywhere
    dialog box displays:


  4. You must supply the following values:

    • Data source name on the ODBC tab page
    • User ID and password on the Login tab page
    • Database file on the Database tab page

    Use the Help button to get information about fields in the
    dialog box.

  5. (Optional) To select an ODBC translator to translate
    your data from one character set to another, click the Select button
    on the ODBC tab.

    See “Selecting an ODBC translator”.

  6. Click OK to save the data source definition.

Specifying a Start Line value

When the SQL Anywhere
ODBC driver cannot find a running personal or network database server
using the PATH variable and Database Name setting, it uses the commands
specified in the Start Line field to start the database servers.

Specify one of the following commands in the Start Line field
on the Database tab page, where n is the version
of SQL Anywhere you are using.

Specify
this command		 To
dbengn.exe Start the personal database server and
the database specified in the Database File box
rtengn.exe Start the restricted runtime database
server and the database specified in the Database File box

For information on completing the ODBC Configuration For SQL
Anywhere dialog box, see the SQL Anywhere
documentation.

Support for Transact-SQL special
timestamp columns

When you work with a SQL Anywhere
table in the DataWindow®, Data Pipeline, or Database painter,
the default behavior is to treat any column named timestamp as
a SQL Anywhere Transact-SQL special timestamp column.

Creating special timestamp columns

You can create a Transact-SQL special
timestamp column in a SQL Anywhere table.

proc.gif To create a Transact-SQL special
timestamp column in a SQL Anywhere table
in PowerBuilder:

  1. Give the name timestamp to any column having
    a timestamp datatype that you want treated
    as a Transact-SQL special timestamp
    column. Do this in one of the following ways:

    • In the painter – Select timestamp as the
      column name. (For instructions, see the User’s
      Guide
      .)
    • In a SQL CREATE
      TABLE statement – Follow the “CREATE TABLE example”.

  2. Specify timestamp as the
    default value for the column. Do this in one of the following ways:

    • In the painter – Select
      timestamp as the default value for the column. (For instructions,
      see the User’s Guide
      .)
    • In a SQL CREATE
      TABLE       statement – Follow the “CREATE TABLE example”.

  3. If you are working with the table in the Data
    Pipeline painter, select the initial value exclude for the special
    timestamp column from the drop-down list in the Initial Value column
    of the workspace.

    You must select exclude as the initial value to exclude the
    special timestamp column from INSERT or UPDATE statements.

    For instructions, see the User’s
    Guide
    .

CREATE TABLE example

The following CREATE TABLE statement defines
a SQL Anywhere table named timesheet containing
three columns: employee_ID (integer datatype), hours (decimal datatype),
and timestamp (timestamp datatype
and timestamp default value):

Not using special timestamp columns

If you want to change the default behavior, you can specify
that PowerBuilder not treat SQL Anywhere
columns named timestamp as Transact-SQL special timestamp columns.

proc.gif To specify that PowerBuilder not treat
columns named timestamp as a Transact-SQL special timestamp column:

  1. Edit the Sybase SQL Anywhere section of
    the PBODB110 initialization file to change the value of SQLSrvrTSName
    from ‘Yes’ to ‘No’.

    After making changes in the initialization
    file, you must reconnect to the database to have them take effect.
    See Appendix A, “Adding
    Functions to the PBODB110 Initialization File”

What to do next

For instructions on connecting to the ODBC
data source, see “Connecting to a database”.
