Changing default layouts

You can change the layout of the PowerBuilder main window
in several ways. This section describes:

• Showing
  or hiding the System Tree, Output, and Clip windows and changing
  their locations
• Showing or hiding views in painters and changing
  their locations

You can also show or hide toolbars, change their locations,
and add custom buttons. See “Using toolbars”.

Arranging the System Tree, Output, and Clip windows

Hiding windows

The System Tree, Output, and Clip windows can all be hidden
at any time by clicking their buttons on the PowerBar.

Moving windows

You can dock the System Tree, Output, and Clip windows at
the top, bottom, left, or right of the PowerBuilder main window
by dragging the double bar at the top or side of the windows.

Using the full width or height of the main window

Windows docked at the top or bottom of the main window occupy
the full width of the frame. You can change this default by clearing
the Horizontal Dock Windows Dominate check box on the General page

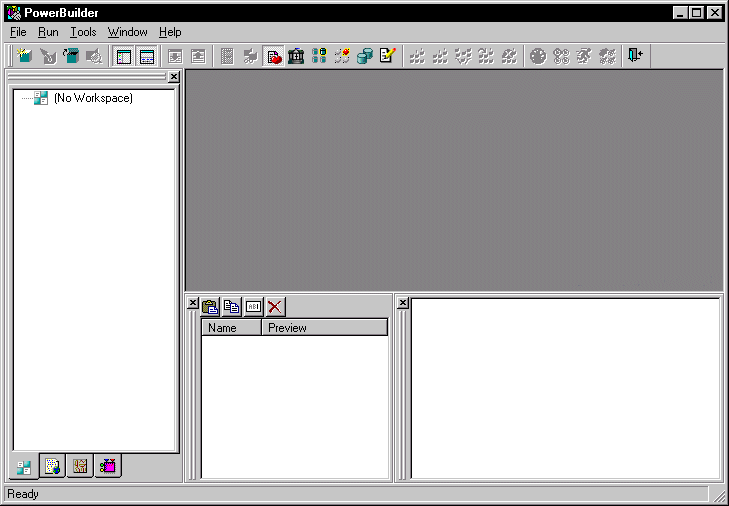

System Options dialog box. The following screen shows the Clip and
Output windows docked at the bottom of the window. The Horizontal
Dock Windows Dominate check box has been cleared so that the System
Tree occupies the full height of the window:

Using views in painters

Most of the PowerBuilder painters
have views. Each view provides a specific way of viewing or modifying
the object you are creating or a specific kind of information related
to that object. Having multiple views available in a painter window
means you can work on more than one task at a time. In the Window painter,
for example, you can select a control in the Layout view to modify
its properties, and double-click the control to edit its scripts.

Views are displayed in panes in the painter window. Some views
are stacked in a single pane. At the bottom of the pane there is
a tab for each view in the stack. Clicking the tab for a view pops
that view to the top of the stack.

Each painter has a default layout, but you can display the
views you choose in as many panes as you want to and save the layouts
you like to work with. For some painters, all available views are
included in the default layout; for others, only a few views are
included.

Each pane has:

• A title bar you can
  display temporarily or permanently
• A handle in the top-left corner you can use to drag
  the pane to a new location
• Splitter bars between the pane and each adjacent
  pane

Displaying the title bar

For most views a title
bar does not permanently display at the top of a pane (because it
is often unnecessary). But you can display a title bar for any pane either
temporarily or permanently.

To display a title bar:

1. Place the pointer on the splitter bar at
   the top of the pane.

   The title bar displays.

2. To display the title bar permanently, click the
   pushpin at the left of the title bar or select Pinned from its pop-up
   menu.

   Click the pushpin again or select Pinned again on the pop-up
   menu to hide the title bar.

After you display a title bar either temporarily or permanently,
you can use the title bar’s pop-up menu.

To maximize a pane to fill the workspace:

1. Select Maximize from the title bar’s
   pop-up menu or click the Maximize button on the title bar

To restore a pane to its original size:

1. Select Restore from the title bar’s
   pop-up menu or click the Restore button on the title bar

Moving and resizing panesand views

You can move a pane or a view to any
location in the painter window. You might find it takes a while
to get used to moving panes and views around, but if you do not
like a layout, you can always revert to the default layout and start again.
To restore the default layout, select View>Layouts>Default.

To move a pane, select and drag the title bar of the view
that is at the top of the stack. If the pane contains stacked views, all views
in the stack move together. To move one of the views out of the
stack, drag the tab for the view you want to move.

To move a pane:

1. Place the pointer anywhere on the title
   bar of the view at the top of the stack, hold down the left mouse
   button, and start moving the pane.

   A gray outline appears around the pane:



2. Drag the outline to the new location.

   The outline changes size as you drag it. When the pointer
   is over the middle of a pane, the outline fills the pane. As you
   drag the pointer toward any border, the outline becomes a narrow
   rectangle adjacent to that border. When the pointer is over a splitter
   bar between two panes, rows, or columns, the outline straddles the
   splitter bar:



   When you move the pointer to a corner When you move the pointer to a corner, you will find that
   you have many places where you can drop the outline. To see your
   options, move the pointer around in all directions in the corner
   and see where the outline displays as you move it.

3. Release the mouse button to drop the outline in
   the new location:

   To move a pane here	Drop the outline here
   Between two panes	On the splitter bar between the panes
   Between a border and a pane	At the side of the pane nearest the border
   Into a new row	On the splitter bar between two rows or at the top or bottom of the painter window
   Into a new column	On the splitter bar between two columns or at the left or right edge of the painter window
   Onto a stack of panes	On the middle of the pane (if the pane was not already tabbed, tabs are created)

To move a view in a stacked pane:

1. Place the pointer anywhere on the view’s
   tab, hold down the left mouse button, and start moving the view.

   You can now move the view as in the previous procedure. If
   you want to rearrange the views in a pane, you can drag the view
   to the left or right within the same pane.

To resize a pane:

1. Drag the splitter bars between panes.

Floating and docking views

Panes are docked by default within a
painter window, but some tasks may be easier if you float a pane.
A floating pane can be moved outside the painter’s window
or even outside the PowerBuilder window.

When you open another painter If you have a floating pane in a painter and then open another
painter, the floating pane temporarily disappears. It reappears
when the original painter is selected.

To float a view in its own pane:

1. Select Float from the title bar’s
   pop-up menu.

To float a view in a stacked pane:

1. Select Float from the tab’s pop-up
   menu.

To dock a floating view:

1. Select Dock from the title bar’s
   pop-up menu.

Adding and removing views

You may want to add additional views to the painter window.
You can open only one instance of some views, but you can open as
many instances as you need of others, such as the Script view. If
there are some views you rarely use, you can move them into a stacked
pane or remove them. When removing a view in a stacked pane, make
sure you remove the view and not the pane.

To add a new view to the painter window:

1. Select View from the menu bar and then
   select the view you want to add.

   The view displays in a new pane in a new row.

2. Move the pane where you want it.

   For how to move panes, see “Moving and resizing panes
   and views”.

To remove a view in its own pane from the painter
window:

1. If the view’s title bar is not
   displayed, display it by placing the pointer on the splitter bar
   at the top of the pane.

2. Click the Close button on the title bar.

To remove a view in a stacked pane from the painter
window:

1. Select the tab for the view and select
   Close from its pop-up menu.

To remove a stacked pane from the painter window:

1. If the title bar of the top view in the
   stack is not displayed, display it by placing the pointer on the
   splitter bar at the top of the pane.

2. Click the Close button on the title bar.

Saving a layout

When you have rearranged panes
in the painter window, PowerBuilder saves the layout in the registry.
The next time you open the painter window, your last layout displays.
You can also save customized layouts so that you can switch from
one to another for different kinds of activities.

To save customized layouts for a painter window:

1. Select View>Layouts>Manage
   from the menu bar.

2. Click the New Layout button (second from the left
   at the top of the dialog box).



3. Type an appropriate name in the text box and click
   OK.

Restoring the default layout You can restore the default
layout at any time by selecting Views>Layout>Default.

---
