Basic software components for the DirectConnect interface – PB Docs 2018

The following figure shows the basic software components required to
access a database using the DirectConnect interface and the DirectConnect
middleware data access product.

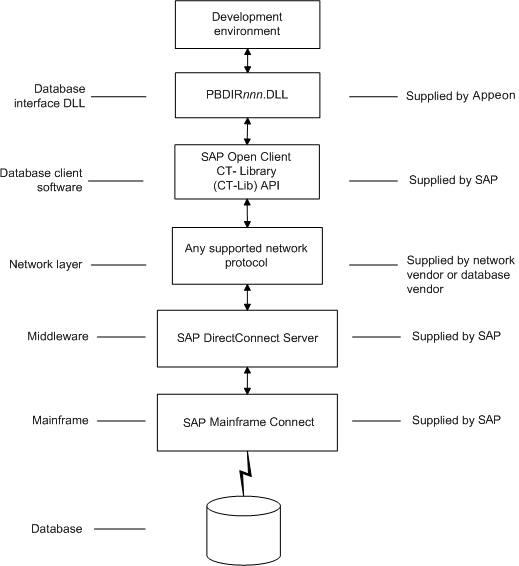

Figure: Components of a DirectConnect connection using DirectConnect
middleware

The following figure shows the basic software components required to
access a database using the DirectConnect interface and the Open
ServerConnect middleware data access product.

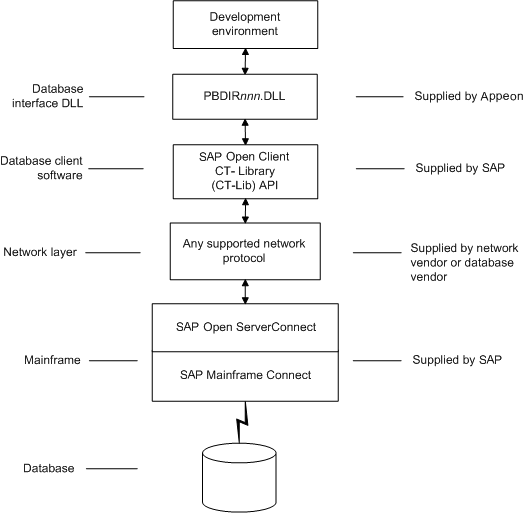

Figure: Components of a DirectConnect connection using Open
ServerConnect middleware
