Using the
extension in PowerBuilder
To use the PowerBuilder native class in a PowerBuilder
application, import the object descriptions in the PBX file into a
library in your application.
To import the extension into an application:
-
Copy the PBX (or DLL) file to a directory on your
application’s path. -
In PowerBuilder, create a new workspace.
-
On the Target page of the New dialog box, select the
Application icon to create a new target, library, and application
object. -

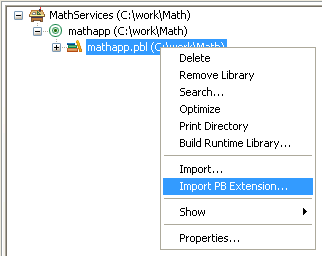

In the System Tree, expand the new target, right-click the
library, and select Import PB Extension from the pop-up menu.
-
Navigate to the location of the pbadd.pbx file and click
Open.
To invoke the f_add function in PowerBuilder:
-
Create a new window called w_add, and add three single-line
edit boxes and a command button to it. -
Declare an instance variable called mypbadd for the pbadd
native class, and then add this script to the button’s Clicked

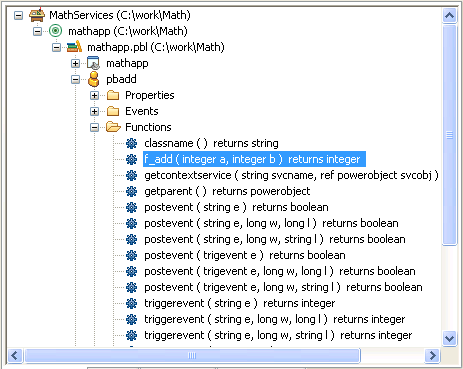

event:123456789TRYmypbadd = CREATE pbaddsle_3.text = string (mypbadd.f_add( &integer(sle_1.text), integer(sle_2.text)))CATCH (runtimeerror re)MessageBox("Error", &"pbadd native class could not be created: " + &re.getmessage() )END TRYThe pbadd class displays in the System Tree. As shown in the
following screen shot, you can expand its function list:
-
Add open(w_add)to the application’s Open event.
-
Run the application.
The application runs just as it would if you had created a custom
class user object in PowerBuilder with an f_add function. If
PowerBuilder cannot find pbadd.pbx, the runtime error in the Clicked
event script will be triggered and caught. Put pbadd.pbx in the same
directory as the executable or the PowerBuilder runtime DLLs to make
sure it can be found.
