Using
ListView controls
Contents
A ListView control allows you to display items and icons in a
variety of arrangements. You can display large icon or small icon freeform

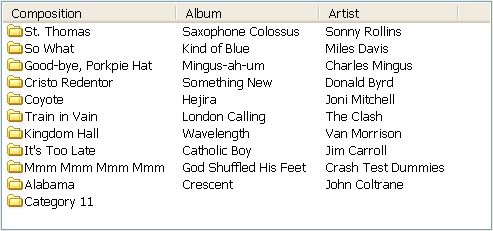

lists, or you can display a vertical static list. You can also display
additional information about each list item by associating additional
columns with each list item:
ListView controls consist of ListView items, which are stored in an
array. Each ListView item consists of a:
-
Label
The name of the ListView item
-
Index
The position of the ListView item in the control
-
Picture index
The number that associates the ListView item with an
imageDepending on the style of the presentation, an item could be
associated with a large picture index and a small picture
index. -
Overlay picture index
The number that associates the ListView item with an overlay
picture -
State picture index
The number that associates the ListView item with a state
For more information about ListView items, picture indexes, and
presentation style, see the section called “ListView” in Users Guide.
Creating ListView controls
You add ListView controls to windows in the same way you add other
controls: select ListView from the Insert>Control menu and click the
window.
Adding ListView items
In the painter
Use the Items property page for the control to add items.
To add items to a ListView:
-
Select the Items tab in the Properties view for the
control. -
Enter a name and a picture index number for each of the items
you want to add to the ListView.Clearing all entries on the Items tab page
Setting the picture index for the first item to zero clears
all the settings on the tab page.For more information about adding pictures to a ListView
control, see Adding
pictures to ListView controls.
In a script
Use the AddItem and InsertItem functions to add items to a ListView
dynamically at runtime. There are two levels of information you supply
when you add items to a ListView using AddItem or InsertItem.
You can add an item by supplying the picture index and label, as
this example shows:
|
1 |
lv_1.AddItem ("Item 1", 1) |
or you can insert an item by supplying the item’s position in the
ListView, label, and picture index:
|
1 |
lv_1.InsertItem (1,"Item 2", 2) |
You can add items by supplying the ListView item itself. This
example in the ListView’s DragDrop event inserts the dragged object into
the ListView:
|
1 2 3 4 5 |
listviewitem lvi This.GetItem(index, lvi) lvi.label = "Test" lvi.pictureindex = 1 This.AddItem (lvi) |
You can insert an item by supplying the ListView position and
ListView item:
|
1 2 3 4 5 6 7 8 |
listviewitem l_lvi //Obtain the information for the //second listviewitem lv_list.GetItem(2, l_lvi) //Change the item label to Entropy //Insert the second item into the fifth position lv_list.InsertItem (5, l_lvi) lv_list.DeleteItem(2) |
Adding pictures to ListView
controls
PowerBuilder stores ListView images in four image lists:
-
Small picture index
-
Large picture index
-
State picture index
-
Overlay picture index
You can associate a ListView item with these images when you create
a ListView in the painter or use the AddItem and InsertItem at
runtime.
However, before you can associate pictures with ListView items, they
must be added to the ListView control.
In the painter
Use the Pictures and Items property pages for the control to add
pictures.
To add pictures to a ListView control:
-
Select the Large Picture, Small Picture, or State tab in the
Properties view for the control.Overlay images
You can add overlay images only to a ListView control in a
script. -
Select an image from the stock image list, or use the Browse
button to select a bitmap, cursor, or icon image. -
Select a color from the PictureMaskColor drop-down menu for the
image.The color selected for the picture mask appears transparent in
the ListView. -
Select a picture height and width for your image.
This controls the size of the image in the ListView.
Dynamically changing image size
The image size can be changed at runtime by setting the
PictureHeight and PictureWidth properties before you add any
pictures when you create a ListView. For more information about
PictureHeight and PictureWidth, see the section called “PictureHeight” in Objects and Controls and
the section called “PictureWidth” in Objects and Controls. -
Repeat the procedure for the:
-
Number of image types (large, small, and state) you plan to
use in your ListView -
Number of images for each type you plan to use in your
ListView
-
In a script
Use the functions in the following table to add pictures to a
ListView image.
|
Function |
Adds a picture to this list |
|---|---|
|
AddLargePicture |
Large image |
|
AddSmallPicture |
Small image |
|
AddStatePicture |
State image |
Adding large and small
pictures
This example sets the height and width for large and small pictures
and adds three images to the large picture image list and the small
picture image list:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 |
//Set large picture height and width lv_1.LargePictureHeight=32 lv_1.LargePictureWidth=32 //Add large pictures lv_1.AddLargePicture("c:ArtGalmpsceltic.bmp") lv_1.AddLargePicture("c:ArtGalmpslist.ico") lv_1.AddLargePicture("Custom044!") //Set small picture height and width lv_1.SmallPictureHeight=16 lv_1.SmallPictureWidth=16 //Add small pictures lv_1.AddSmallPicture("c:ArtGalmpsceltic.bmp") lv_1.AddSmallPicture("c:ArtGalmpslist.ico") lv_1.AddSmallPicture("Custom044!") //Add items to the ListView lv_1.AddItem("Item 1", 1) lv_1.AddItem("Item 2", 1) lv_1.AddItem("Item 3", 1) |
Adding overlay pictures
Use the SetOverLayPicture function to use a large picture or small
picture as an overlay for an item. This example adds a large picture to a
ListView, and then uses it for an overlay picture for a ListView
item:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 |
listviewitem lvi_1 int li_index //Add a large picture to a ListView li_index = lv_list.AddLargePicture & ("c:ArtGalmpsdil2.ico") //Set the overlay picture to the //large picture just added lv_list.SetOverlayPicture (3, li_index) //Use the overlay picture with a ListViewItem lv_list.GetItem(lv_list.SelectedIndex (), lvi_1) lvi_1.OverlayPictureIndex = 3 lv_list.SetItem(lv_list.SelectedIndex (), lvi_1) |
Adding state pictures
This example uses an item’s state picture index property to set the
state picture for the selected ListView item:
|
1 2 3 4 5 |
listviewitem lvi_1 lv_list.GetItem(lv_list.SelectedIndex (), lvi_1) lvi_1.StatePictureIndex = 2 lv_list.SetItem(lv_list.SelectedIndex (), lvi_1) |
Deleting ListView items and
pictures
You can delete items from a ListView one at a time with the
DeleteItem function, or you can use the DeleteItems function to purge all
the items in a ListView. Similarly, you can delete pictures one at a time
with the DeleteLargePicture, DeleteSmallPicture, and
DeleteStatePicture functions, or purge all pictures of a specific type by
using the DeleteLargePictures, DeleteSmallPictures, and
DeleteStatePictures functions.
This example deletes one item and all the small pictures from a
ListView:
|
1 2 3 4 |
int li_index li_index = This.SelectedIndex() This.DeleteItem (li_index) This.DeleteSmallPictures () |
Hot tracking and one- or two-click
activation
Hot tracking changes the appearance of items in the Listview control
as the mouse moves over them and, if the mouse pauses, selects the item
under the cursor automatically. You can enable hot tracking by setting the
TrackSelect property to TRUE.
Setting either OneClickActivate or TwoClickActivate to TRUE also
enables hot tracking. When OneClickActivate is TRUE, you can specify that
either selected or unselected items are underlined by setting the
UnderlineHot or UnderlineCold properties. All these properties can be set
on the control’s general properties page or in a script.
The settings for OneClickActivate and TwoClickActivate shown in the
following table affect when the ItemActivate event is fired.
|
OneClickActivate |
TwoClickActivate |
ItemActivate is fired when you |
|---|---|---|
|
TRUE |
TRUE or FALSE |
Click any item |
|
FALSE |
TRUE |
Click a selected item |
|
FALSE |
FALSE |
Double-click any item |
Using custom events
In PowerBuilder 7 and later releases, PowerBuilder uses Microsoft
controls for ListView and Treeview controls, and the events that fire when
the right mouse button is clicked are different than in earlier releases.
These are the events that fire when the right mouse button is clicked in a
ListView control:
|
Location |
Action |
Events fired |
|---|---|---|
|
On an item in the |
Press right mouse button |
pbm_rbuttondown |
|
Release right mouse button |
pbm_lvnrclicked (stock RightClicked! pbm_contextmenu |
|
|
On white space in the |
Press right mouse button |
pbm_rbuttondown pbm_lvnrclicked (stock pbm_contextmenu |
|
Release right mouse button |
pbm_rbuttonup pbm_contextmenu |
