Sizing the client area
PowerBuilder sizes the client area in a standard MDI frame window
automatically and displays open sheets unclipped within the client area.
It also sizes the client area automatically if you have defined a toolbar
based on menu items, as described in the preceding section.
However, in a custom MDI frame window where the client area contains
controls in addition to open sheets PowerBuilder does not size the client
area; you must size it. If you do not size the client area, the sheets
open but may not be visible and are clipped if they exceed the size of the
client area.
If you plan to use an MDI toolbar with a custom MDI frame, make sure
the controls you place in the frame’s client area are far enough away from
the client area’s borders so that the toolbar does not obscure them when
displayed.
Scroll bars display when a sheet is clipped
If you selected HScrollBar and VScrollBar when defining the
window, the scroll bars display when a sheet is clipped. This means not
all the information in the sheet is displayed. The user can then scroll
to display the information.
When you create a custom MDI frame window, PowerBuilder creates a
control named MDI_1 to identify the client area of the frame. If you have
enabled AutoScript, MDI_1 displays in the list of objects in the
AutoScript pop-up window when you create a script for the frame.
To size or resize the client area when the frame is opened or
resized:
-
Write a script for the frame’s Open or Resize event that:
-
Determines the size of the frame
-
Sizes the client area (MDI_1) appropriately

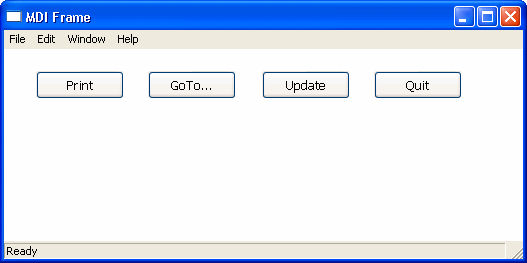

For example, the following script sizes the client area for the
frame w_genapp_frame. The frame has a series of buttons running across
the frame just below the menu, and MicroHelp at the bottom:
1234567891011121314151617181920212223242526272829303132333435363738394041424344454647484950int li_width, li_height//Get the width and height of the frame's workspace.////Note that if the frame displays any MDI toolbars,//those toolbars take away from the size of the//workspace as returned by the WorkSpaceWidth and//WorkSpaceHeight functions. Later, you see how to//to adjust for this.//li_width = w_genapp_frame.WorkSpaceWidth()li_height = w_genapp_frame.WorkSpaceHeight()//Next, determine the desired height of the client//area by doing the following://// 1) Subtract from the WorkSpaceHeight value: the// height of your control and the Y coordinate of// the control (which is the distance between the// top of the frame's workspace -- as if no// toolbars were there -- and the top of your// control).//// 2) Then subtract: the height of the frame's// MicroHelp bar (if present)//// 3) Then add back: the height of any toolbars that// are displayed (to adjust for the fact that the// original WorkSpaceHeight value we started with// is off by this amount). The total toolbar// height is equal to the Y coordinate returned// by the WorkspaceY function.li_height = li_height - (cb_print.y + cb_print.height)li_height = li_height - MDI_1.MicroHelpHeightli_height = li_height + WorkspaceY()//Now, move the client area to begin just below your//control in the workspace.mdi_1.Move (WorkspaceX (), cb_print.y + &cb_print.height)//Finally, resize the client area based on the width//and height you calculated earlier.mdi_1.Resize (li_width, li_height) -
About MicroHelpHeight
MicroHelpHeight is a property of MDI_1 that PowerBuilder sets when
you select a window type for your MDI window. If you select MDI Frame,
there is no MicroHelp and MicroHelpHeight is 0; if you select MDI Frame
with MicroHelp, MicroHelpHeight is the height of the MicroHelp.
