Run the application – PB Docs 2022

Click the Run button () in the PowerBar.

PowerBuilder prompts you to save your changes.

Click Yes.

The application begins running, and the login window
displays.

Type dba in the User ID box.

Type sql in the Password box and click OK.

The database connection is established, and the MDI frame for
the application displays.

Select File>Report>Maintain Customers from the menu
bar.

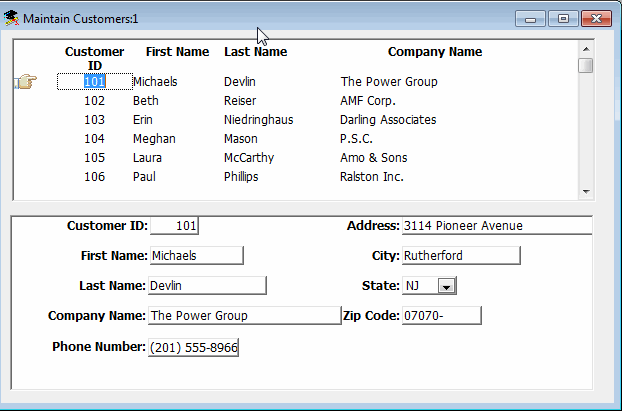

The Customer window displays.

The top DataWindow control (dw_master) shows all of the rows
retrieved from the Customer table. The hand pointer shows which row is
selected.

The bottom DataWindow control (dw_detail) shows further
information about the selected customer.

In the running application, click the Insert button in the
toolbar

or

Select Edit>Insert from the Frame window menu bar.

This clears (resets) the dw_detail DataWindow, allowing you to
add information for a new row that you will insert into the data
source. The cursor is in the Customer ID box in the dw_detail
control.

Add a new customer row by entering information in the boxes in
the detail DataWindow.

Enter values for the remaining fields.

The phone number and zip code use edit masks to display the
information you type. You must enter numbers only for these data
fields. To specify the state in which the customer resides, you must
click the arrow next to the state column and select an entry from the
drop-down list box.

Click the Update button in the toolbar

or

Select Edit>Update from the menu bar.

This sends the new customer data to the database and displays a
confirmation message, as coded in the script for the ue_update
event.

The new customer does not yet display in the master DataWindow.
(You could add code to include this feature). However, if you open
another instance of the w_customers sheet, the new customer data is
visible in both the master and detail DataWindow controls.

Click OK in the message box.

Click a customer in the master DataWindow.

That customer data displays in the lower DataWindow.

Change the customer address in the detail DataWindow.

Click the Update button in the toolbar

or

Select Edit>Update from the menu bar.

This sends the revised customer data to the database and
displays another confirmation message.

Click OK in the message box.

Select another customer in the master DataWindow.

That customer data displays in the detail DataWindow.

Click the Delete button in the toolbar

or

Select Edit>Delete from the menu bar.

The customer is deleted from the DataWindow immediately but is
not deleted from the database unless you select the Update option on
the Edit menu. In this particular situation, the Update operation may
fail, because rows in other tables in the Demo Database may refer to
the row that you are trying to delete.

You should be able to delete any row that you have added to the
database.

Select File>Exit from the menu bar.

The application terminates and you return to the Window
painter.

Close the Window painter.
