PBDOM objects – PB Docs 2019

PBDOM_OBJECT, the base class for PBDOM objects that represent XML
nodes, inherits from the PowerBuilder NonVisualObject class. PBDOM
represents node types by the following classes:

You use methods from these classes to access objects in a PBDOM
node tree.

The PBDOM_BUILDER class does not represent DOM nodes but can be
used to build a PBDOM object tree from XML. It inherits from the
PowerBuilder NonVisualObject class.

The PBDOM_EXCEPTION class inherits from the PowerBuilder Exception
class and provides a method that obtains error codes.

Each of these classes and their methods are described in the
chapters that follow.

Comparing PBDOM objects with W3C DOM and
JDOM objects

The following table shows the W3C DOM and JDOM objects that
correspond to each PBDOM object that represents a node in the DOM tree.
Note that although these W3C DOM and JDOM objects correspond to PBDOM
objects, they are not equivalent to the PBDOM objects.

Object hierarchy

The W3C DOM and JDOM object hierarchies also differ from the PBDOM
object hierarchy, which is shown in the following illustration.

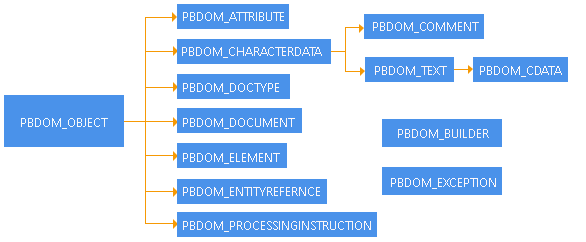

Figure: The PBDOM object hierarchy

For more information about working with PBDOM, see the chapter on
PowerBuilder XML services in Application Techniques.
