OAuth Grant Types

Contents

Authorization Code
Implicit Flow
Client Credentials
Extension (or Refresh Token)
Resource Owner Password

PowerBuilder supports getting secured data from the OAuth 2.0
authorization server. The Bearer access token is supported, and the
following grant types are supported:

Authorization Code
Implicit Flow
Client Credentials
Extension (or Refresh Token)
Resource Owner Password

Authorization Code and Implicit Flow can be implemented using the
WebBrowser control and the OAuthClient object. The WebBrowser control
gets the authorization code. The OAuthClient object obtains the access
token and protected resources.

Client Credentials, Extension, and Resource Owner Password can be
implemented using the OAuthClient object (including TokenRequest,
TokenResponse, OAuthRequest, and ResourceResponse). The OAuthClient
object obtains the access token and protected resources. The
TokenRequest and TokenResponse objects get or set the access token
request and response. The OAuthRequest and ResourceResponse objects get
or set the protected resource request and response.

PowerBuilder supports the Basic HTTP authentication theme (see
Example 2 (using
HTTPClient)), and does not support the following HTTP
authentication themes: Digest, NTLM, Passport, and Negotiate.

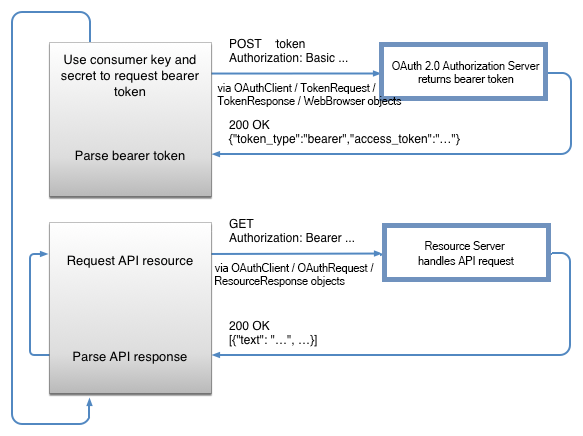

As shown in the following figure, to access data from the OAuth
2.0 authorization server, there are mainly two steps:

Use the HTTP Post method to request the access token from the
authorization server;
Set the access token in the HTTP Authorization header, and use
Get method to request the data from the resource server.

This section provides code examples to demonstrate how to get data
using different grant type.

And the examples will use the following server settings and
parameters.

	For requesting access token
Token URL and settings	TokenLocation=”https://xxx.xxx.xxx/oauth2/token” ClientID=”367c4163ddc1427d96655cd220c6714b” Secret=”4079f8749939446cbc81fd0c27709187″
Parameters	Authorization Server (GrantType=”authorization_code”): UserName=”username” in the following example. Password=”password123″ in the following example. Scope=”https://www.googleapis.com/auth/youtube” Redirect=”https://www.appeon.com/callback” Authorization URL=”https://accounts.google.com/o/oauth2/auth”	Implicit Flow: UserName=”username” in the following example. Password=”password123″ in the following example. Scope=”https://www.googleapis.com/auth/youtube” Redirect=”https://www.appeon.com/callback” Authorization URL=”https://accounts.google.com/o/oauth2/auth”	Client Credentials (GrantType=”client_credentials”): Scope=”dscode dsperf” in the following example. This parameter is optional.	Extension (GrantType=”refresh_token”): refresh_token= “8a9767b5f7e59245339cb965ce4bfdf589e155535c042a8b2a90d89093eefb7e” Scope=”testcode upcode profile offline_access” in the following example. This parameter is optional.	Resource Owner Password (GrantType=”password”): UserName=”username” in the following example. Password=”password123″ in the following example. Scope=”testcode” in the following example. This parameter is optional.
Format	JSON
Required Authentication	Yes (“Basic …”) Note: The WebBrowser control does not support the OAuth basic authentication, therefore, when implementing the Authorization Code grant type with the WebBrowser control, the user will have to specify the authorization username and password.
Successful Responses:	Return the following value and JSON string if succeed: 200 OK {“access_token”: “0374672c0f9a83d7e808725bd8ea748a250f2b8e151b9d93f2afa7805ec2dd52”, “expires_in”: 3600, “token_type”: “Bearer”, “refresh_token”: “8a9767b5f7e59245339cb965ce4bfdf589e155535c042a8b2a90d89093eefb7e”}

	For requesting resource
Resource URL	https://xxx.xxx.xxx/order/getall
Format	JSON
Required Authentication	Yes (“Bearer …”)
Successful Responses:	Return the following value and JSON string if succeed: 200 OK [{“person_Title”: “Mr.”, “person_Firstname”: “Kevin”, “person_Middlename”: “F.”, “person_Lastname”: “Browne”, “customer_Modifieddate”: “2014-09-12T11:15:07.263”, “customer_Customerid”: 29592, “sumamt”: 80468.2110, “avgamt”: 10058.5263}]

Document get from Powerbuilder help
