Modify the frame window Open event – PB Docs 2021

Wizard-generated script

The frame window Open event already has a script associated with
it that was generated by the Template Application wizard. The script
creates an instance of a wizard-generated user object that serves as a
sheet (window) manager. The Open script then calls the ue_postopen
event.

1. Select File>Open from the menu bar.

   Make or verify the following selections in the Open dialog
   box:

   Open dialog box item	Selection to make (or verify)
   Target	pbtutor — currently your only target
   Libraries	pbtutor.pbl — currently your only library; if you cannot see the full library name, you can drag the edge of the dialog box to increase its size
   Object Name	w_pbtutor_frame
   Objects of Type	Windows — you must make sure this is selected before you can select a named object of this type
   Using	Painter

   The w_pbtutor_frame object is the main application window
   created by the Template Application wizard.

2. Click OK.

   The Window painter opens and displays views of the main
   application window in the painter workspace.

   If the Script view is not open, you can open it by selecting
   View>Script in the workspace menu bar or by double-clicking
   inside the Layout view.

3. Move the cursor to the top of the Script view.

   The view title bar rolls down. It contains a pushpin button on
   the left and a maximize/minimize button and a close button on the
   right.

4. Click the pushpin in the title bar of the Script view.

   The title bar of the Script view reads:

   PowerBuilder

   Script - open for w_pbtutor_frame returns long

   1	Script - open for w_pbtutor_frame returns long

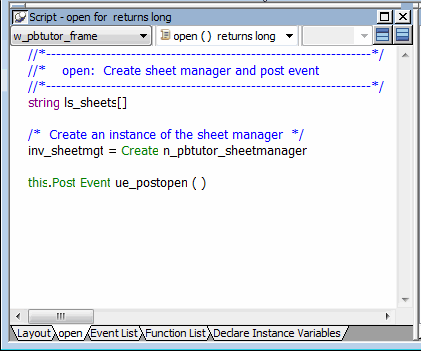

5. Make sure the Open event displays in the Script view.



   The PowerScript code in the Script view is preceded by
   comments.

   Using comments

   A comment in PowerScript is indicated by either two forward
   slashes (//) at the start of a single-line comment, or a slash and
   an asterisk (/*) at the start and an asterisk and a slash (*/) at
   the end of a single-line or multiline comment. Comments are not
   parsed by the script compiler.

   You now modify the Open event script to cause the login window
   to display.

6. Click after the parentheses in the line that reads:

   PowerBuilder

   this.Post Event ue_postopen ( )

   1	this.Post Event ue_postopen ( )

   The ue_postopen event does not take any arguments.

7. Press Enter twice.

   This adds a blank line in the Script view for legibility. The
   cursor moves to a new line following the blank line.

8. Type Open the login window on the new line in the Script
   view.

9. Click the Comment button () in PainterBar2.

   Two slashes appear in front of the line you typed — it is
   changed into a comment.

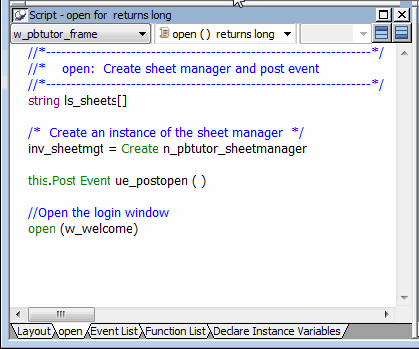

10. Move the cursor to the end of the comment.

    Press Enter to add a new line.

    Type open (w_welcome) on the new line.

    This calls the Open function to display the login window you
    created.



Accessing context-sensitive Help

To access context-sensitive Help for a function or reserved word
(such as Open), select the function or reserved word in the Script
view and press Shift+F1. You can always open the main Help screen by
pressing F1.
