Example 3: highlighting rows of data

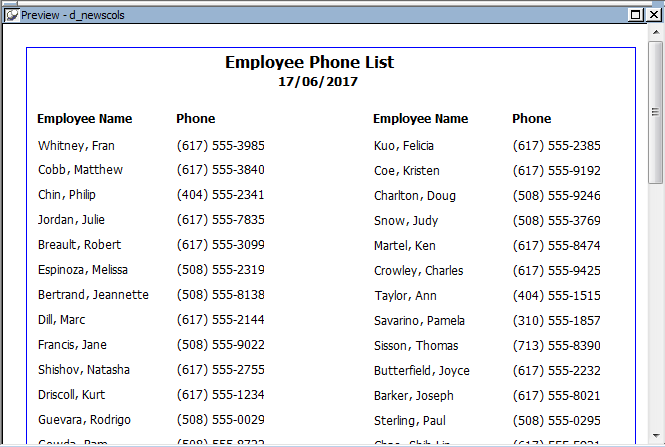

The following DataWindow object is an employee phone list for a
company in Massachusetts. Out-of-state (not in Massachusetts)
employees are shown in bold and preceded by two asterisks (**):
This DataWindow object uses newspaper columns. To understand how
to create this DataWindow object without highlighting data, see Printing with newspaper-style columns.
In the Design view, the detail band includes four controls: the
employee last name, a comma, the employee first name, and the phone
number:
To make these controls display in bold with two asterisks if
the employee is not from Massachusetts:
-
Select one of the controls, then use Ctrl + click to select
the other three controls.The Properties view changes to show the properties that are
common to all selected controls. -
On the Font page in the Properties view, click the button
next to the Bold property. -
Enter the following expression in the Modify Expression
dialog box and click OK:1If(state = 'MA', 400, 700)The expression states that if the value of the state column
is MA, use 400 as the font weight. This means employees from
Massachusetts display in the normal font. For any state except MA,
use 700 as the font weight. This means all other employees display
in bold font.Logic that relies on the state column
To use logic that relies on the state column, you need to
include the column in the data source. You can add the column
after creating the DataWindow object by modifying the data
source. Notice that the state column does not actually appear
anywhere in the DataWindow object. Values must be available but
do not need to be included in the DataWindow object. -
To insert two asterisks (**) in front of the employee name
if the employee is not from Massachusetts, add a text control to
the left of the employee name with the two asterisks in
bold. -
With the text control selected, click the button next to its
Visible property on the General page in the Properties
view. -
In the Modify Expression dialog box that displays, enter the
following expression and click OK:1If(state = 'MA', 0, 1)This expression says that if the state of the employee is MA
(the true condition), the Visible property of the ** control is
off (indicated by 0). If the state of the employee is not MA (the
false condition), the Visible property of the ** control is on
(indicated by 1). The asterisks are visible next to that
employee’s name.Tip
You can use underlines, italics, strikethrough, borders,
and colors to highlight information.
