Creating the ODBC data source
This section is required only when the SQL Anywhere or ASE
database is used.
A database connection needs to be established between the
development PC and the database server (for converting DataWindows to
models), and between the web server and the database server (for
retrieving data). Currently the SQL Anywhere database can only be
connected through an ODBC driver, therefore, you will need to create
the same ODBC data source in both:
-
the development PC, and
-
the web server
In Setting up the
database server, we have successfully set up the salesdemo SQL Anywhere database server in an
individual machine. In this tutorial, we will create an ODBC data
source on the development PC that connects to this database server.
(You will take the same steps to create the same ODBC data source on
the web server later. The same ODBC data source means the data source
has the same name, for example, “SalesDemo
DB” in this tutorial)
Step 1: Install SQL Anywhere 17.

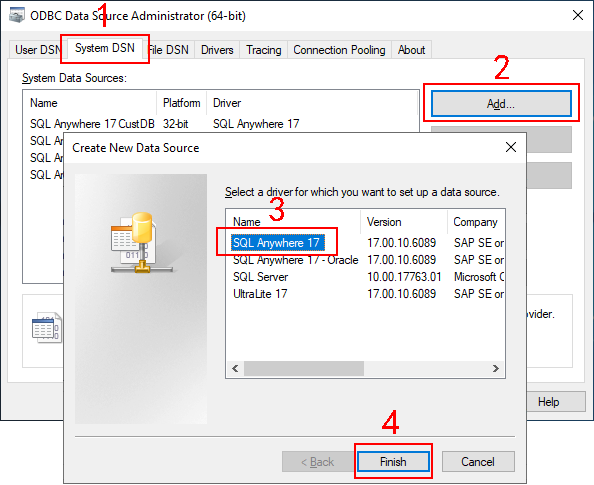

Step 2: Create a 64-bit ODBC data source and name it as
“SalesDemo DB“. The data source name
must be the same in both the development PC and the web server.
IMPORTANT: Make sure you use
the 64-bit version of ODBC administrator to create the data source,
because only 64-bit ODBC data sources are supported for the
PowerServer project.

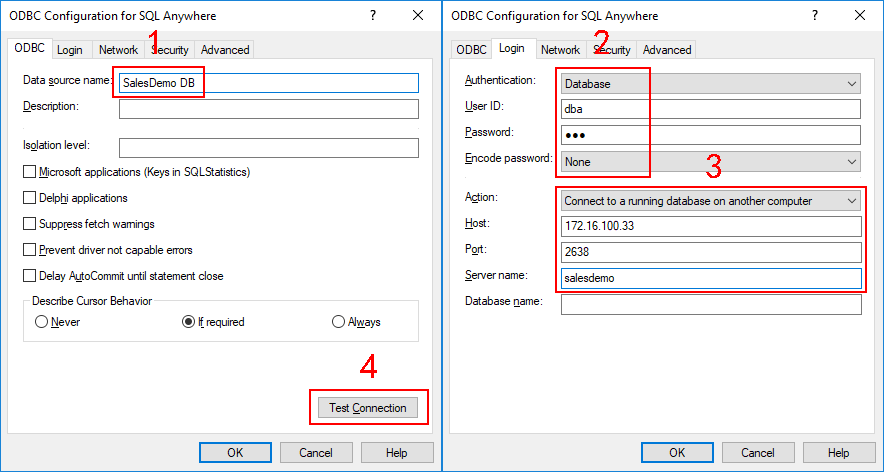

Step 3: Click Test Connection
to ensure the connection settings are correct.
