To create a data pipeline:

1. Click the New button in the PowerBar and then select the
   Database tab page.

2. Select Data Pipeline and click OK.

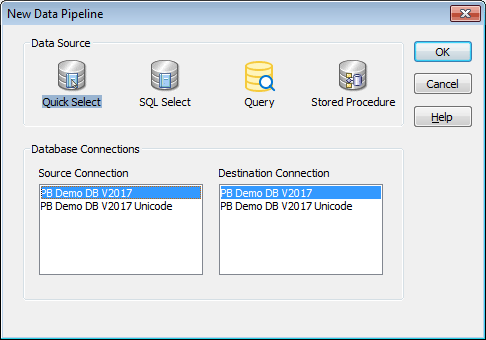

   The New Data Pipeline dialog box displays.



   The Source Connection and Destination Connection boxes display
   database profiles that have been defined. The last database you
   connected to is selected as the source. The first database on the
   destination list is selected as the destination.

   If you do not see the connections you need

   To create a pipeline, the databases you want to use for your
   source and destination must each have a database profile defined.
   If you do not see profiles for the databases you want to use,
   select Cancel in the New Data Pipeline dialog box and then define
   those profiles. For information about defining profiles, see Changing
   the destination and source databases.

3. Select a data source.

   The data source determines how PowerBuilder retrieves data
   when you execute a pipeline:

   Data source	Use it if
   Quick Select	The data is from tables that have a primary/foreign key relationship and you need only to sort and limit data
   SQL Select	You want more control over the SQL SELECT statement generated for the data source or your data is from tables that are not connected through a key
   Query	The data has been defined as a query
   Stored Procedure	The data is defined in a stored procedure

4. Select the source and destination connections and click
   OK.

5. Define the data to pipe.

   How you do this depends on what data source you chose in step
   3, and is similar to the process used to define a data source for a
   DataWindow object. For complete information about using each data
   source and defining the data, see Defining
   DataWindow Objects.

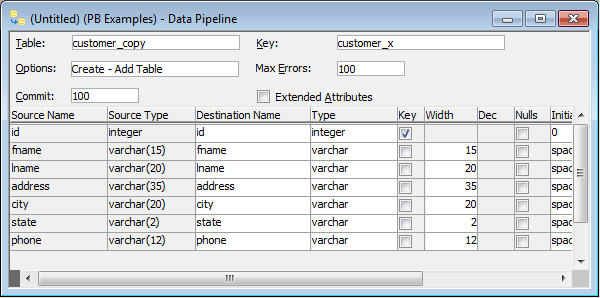

   When you finish defining the data to pipe, the Data Pipeline
   painter workspace displays the pipeline definition, which includes a
   pipeline operation, a check box for specifying whether to pipe
   extended attributes, and source and destination items.



   The pipeline definition is PowerBuilder’s best guess based on
   the source data you specified.

6. Modify the pipeline definition as needed.

   For information, see Modifying the
   data pipeline definition.

7. (Optional) Modify the source data as needed. To do so, click
   the Data button in the PainterBar, or select Design>Edit Data
   Source from the menu bar.

   For information about working in the Select painter, see Defining DataWindow Objects.

   When you return to the Data Pipeline painter workspace,
   PowerBuilder reminds you that the pipeline definition will change.
   Click OK to accept the definition change.

   If you want to try the pipeline now, click the Execute button
   or select Design>Execute from the menu bar.

   PowerBuilder retrieves the source data and executes the
   pipeline. If you specified retrieval arguments in the Select
   painter, PowerBuilder first prompts you to supply them.

   At runtime, the number of rows read and written, the elapsed
   execution time, and the number of errors display in MicroHelp. You
   can stop execution yourself or PowerBuilder might stop execution if
   errors occur.

   For information about execution and how rows are committed to
   the destination table, see When execution
   stops.

8. Save the pipeline definition if appropriate.

   For information, see Saving a
   pipeline.

Seeing the results of piping data

You can see the results of piping data by connecting to the
destination database and opening the destination table.
