Call the connection service manager – PB Docs 2021

Using a single wizard to create the application and
connection

If you had created the connection service user object with the
Template Application wizard, the code you enter in this exercise to
call the connection service manager would have been generated
automatically, but it would have been added to the application Open
event, not to a Clicked event in a login window. It would also have
used a local variable, not a global variable.

1. Double-click w_welcome in the System Tree.

   The Window painter opens.

2. Select cb_ok in the first drop-down list box of the Script
   view

   or

   Double-click the OK button in the Layout view.

   The Clicked event should be the selected event in the second
   drop-down list box. If it is not, select it. The Clicked event
   script is empty.

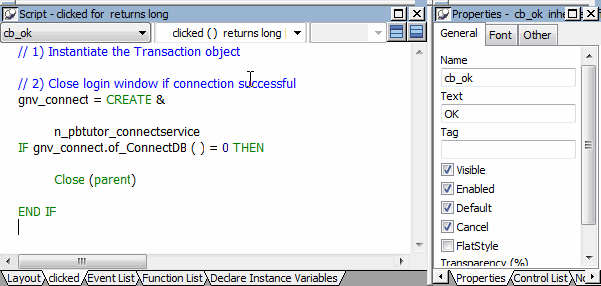

3. Type these lines:

   PowerBuilder

   // 1) Instantiate the Transaction object // 2) Close login window if connection successful

   1 2	// 1) Instantiate the Transaction object // 2) Close login window if connection successful

   These lines explain the code you add to the Clicked event.
   Adding double slash marks at the front of a line turns it into a
   comment.

4. Type the following assignment statement below the
   comments:

   PowerBuilder

   gnv_connect = CREATE & n_pbtutor_connectservice

   1 2	gnv_connect = CREATE &          n_pbtutor_connectservice

   Do not type the ampersand (&) if you combine the lines of
   the script into a single line. The ampersand character indicates
   that a line of script is continued on the next line.

   The CREATE statement instantiates the SQLCA Transaction object
   with all the values retrieved by the of_GetConnectionInfo function
   from the pbtutor.ini file. Because you previously commented out the
   lines for the user ID and password, this information is not
   retrieved.

   For ease of reading, you can add blank lines between the
   comments and the assignment statement for the global variable
   gnv_connect.

5. Type the following lines below the CREATE statement:

   PowerBuilder

   IF gnv_connect.of_ConnectDB ( ) = 0 THEN Close (parent) END IF

   1 2 3

   IF gnv_connect.of_ConnectDB ( ) = 0 THEN          Close (parent) END IF

   The of_ConnectDB function connects the application to the
   database. As you saw earlier in this lesson, if the connection fails
   (the SQLCode is not 0), a message box opens and displays the SQL
   error text.

   If of_ConnectDB returns a zero (the SQLCode for a successful
   connection), the lines that follow the IF-THEN statement line are
   parsed. In this case, the parent window for the cb_ok control
   (w_welcome) closes.



6. Click the Compile button in PainterBar2

   or

   Right-click inside the Script view and click Compile in the
   pop-up menu.

   The script should compile without error. If you get an error
   message, make sure you have typed object and function names
   correctly and saved gnv_connect as a global variable.

   Toggling the Error window of the Script view

   You can show or hide the Error window by clicking the icon
   at the far right of the Script view just under the title
   bar.

   You still need to code the Clicked event to instantiate the
   Transaction object with user-entered connection information.
