To build the Application project with commands:

1. Export the configurations of the Application project to the
   JSON file.

   1. Click the Export Build
      File button () in the toolbar if the Application
      project painter opens, or right click the Application project
      object (or target or workspace) and then select Export Build File.

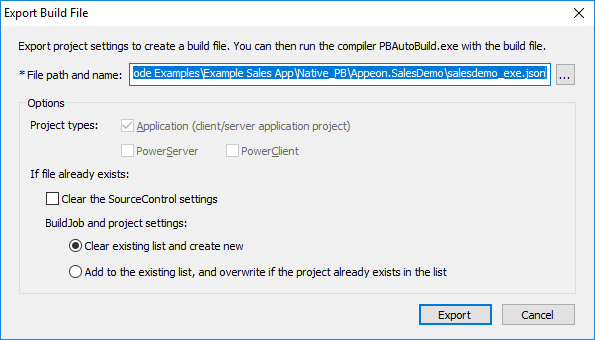

   2. In the Export Build
      File dialog box, specify where to save the exported
      file and how to overwrite the settings if the file already
      exists. Click Export.

      If you right click the workspace and then select
      Export Build File, you can
      select one or more targets to export the build file for, and
      then select one or more project types to export if there are
      more than one type of project objects in the selected
      target(s). If you select more than one project type, the
      corresponding project objects will be exported to the build
      file > “Projects” > [project object name]. If the
      selected targets contain project objects with the same name,
      only the object listed last will be added to the build
      file.



   The exported JSON file includes every single setting that is
   required for building the Application project, just to name a few,
   for example,

   • Project settings such as project type, platform (32-bit
     or 64-bit), build options, code type (Pcode or Machine code)
     etc.

   • Library list

   • Version information

   • Run options

   • …

   You can find a complete list of settings under the
   “Projects” block in the exported file.

   The exported file also contains a “BuildPlan” block which
   provides additional configurations:

   • Settings for downloading and merging source code from
     the source control server (including SVN, Git, and/or
     VSS).

     Locate the “SourceControl” section to configure the
     settings.

     The following example shows how to download source code
     from Git:

     PowerBuilder

     "BuildPlan": { "SourceControl": { "PreCommand": "", "SVN": [ {"SrcPath": "","User": "","Password": "","DestPath": "","Proxy": {"Ip": "","Port": 0,"Username": "","Password": ""}} ], "Git": [ <span><strong> </strong></span><span><strong>{"SrcPath": "https://github.com/Appeon/PowerBuilder-AutoBuild-Sales-SourceCode", "User": "tester@appeon.com", "Password": "YGRrYjc6OzU=", "DestPath": ".\Build", "Proxy": {"Ip": "","Port": 0,"Username": "","Password": ""}}</strong></span> ],

     1 2 3 4 5 6 7 8 9

     "BuildPlan": {         "SourceControl": {             "PreCommand": "",             "SVN": [                 {"SrcPath": "","User": "","Password": "","DestPath": "","Proxy": {"Ip": "","Port": 0,"Username": "","Password": ""}}             ],             "Git": [ <span><strong>                </strong></span><span><strong>{"SrcPath": "https://github.com/Appeon/PowerBuilder-AutoBuild-Sales-SourceCode", "User": "tester@appeon.com", "Password": "YGRrYjc6OzU=", "DestPath": ".\Build", "Proxy": {"Ip": "","Port": 0,"Username": "","Password": ""}}</strong></span>             ],

     The following example shows how to download source code
     from VSS:

     PowerBuilder

     "BuildPlan": { "SourceControl": { "PreCommand": "", "SVN": [ {"SrcPath": "","User": "","Password": "","DestPath": "","Proxy": {"Ip": "","Port": 0,"Username": "","Password": ""}} ], "Git": [ {"SrcPath": "","User": "","Password": "","DestPath": "","Proxy": {"Ip": "","Port": 0,"Username": "","Password": ""}} ], "VSS": [ <span><strong> {"SrcPath": "\\192.168.0.100\Project_VSS\"$/Salesdemo/native_pb/appeon.salesdemo", YYOAAAAA","User": "tester","Password": "","DestPath": ".\Build"}</strong></span> ],

     1 2 3 4 5 6 7 8 9 10 11 12

     "BuildPlan": {         "SourceControl": {             "PreCommand": "",             "SVN": [                 {"SrcPath": "","User": "","Password": "","DestPath": "","Proxy": {"Ip": "","Port": 0,"Username": "","Password": ""}}             ],            "Git": [                 {"SrcPath": "","User": "","Password": "","DestPath": "","Proxy": {"Ip": "","Port": 0,"Username": "","Password": ""}}             ],             "VSS": [ <span><strong>                {"SrcPath": "\\192.168.0.100\Project_VSS\"$/Salesdemo/native_pb/appeon.salesdemo", YYOAAAAA","User": "tester","Password": "","DestPath": ".\Build"}</strong></span>             ],

     Note:

     1) The password for VSS is not supported. The VSS login
     window will be displayed for you to input the password before
     downloading the source code.

     2) The password for SVN or Git must be an encrypted
     value which is generated from the original password by
     executing “PBAutoBuild210.exe /p”, as shown below.



     If the source code downloaded from SVN, Git, or VSS is
     not the PBL file but objects in ws_objects, then you will need
     to merge the objects to the PBL file. Locate the “Merging”
     section in the exported build file and then configure as
     below:

     PowerBuilder

     "Merging": [ {"Target": ".\Build\salesdemo.pbt", "LocalProjectPath": ".\Build", "RefreshPbl": false} ],

     1 2 3

     "Merging": [                 {"Target": ".\Build\salesdemo.pbt", "LocalProjectPath": ".\Build", "RefreshPbl": false}             ],

     Setting “RefreshPbl” to true if you want to refresh the
     PBL files by deleting and then generating the PBL files
     again.

     Merging will not only merge the source code but also
     upgrade the source code to the current version. However, it
     will not check or upgrade the PBD files used in the library
     list (you will need to replace the PBD files with the
     corresponding version).

     At the same time, make sure to double check the target
     location is set correctly in the “Projects” section, for
     example,

     PowerBuilder

     "BuildJob": { "PreCommand": "", "Projects": [ <span><strong> </strong></span><span><strong>{"Target": ".\Build\salesdemo.pbt", "Name": "salesdemo_pbnative"}</strong></span> ], "PostCommand1": "" }

     1 2 3 4 5 6 7

     "BuildJob": {             "PreCommand": "",             "Projects": [ <span><strong>                </strong></span><span><strong>{"Target": ".\Build\salesdemo.pbt", "Name": "salesdemo_pbnative"}</strong></span>             ],             "PostCommand1": ""         }

   • In the “SourceControl” and “BuildJob” sections, you
     could also specify commands that can be executed before and/or
     after that particular section is executed.

     Locate the “PreCommand” and “PostCommand” keywords to
     specify the commands or command file, for example,

     PowerBuilder

     "BuildPlan": { "SourceControl": { "PreCommand": <span><strong>"Command_DeleteFolder.bat",</strong></span> "SVN": [ ... ],

     1 2 3 4 5 6

     "BuildPlan": {         "SourceControl": {             "PreCommand": <span><strong>"Command_DeleteFolder.bat",</strong></span>             "SVN": [                 ...             ],

     The commands in “PreCommand” and “PostCommand” can be
     executed in synchronous (default) or asynchronous mode, and
     the command window can be visible or invisible (default). For
     example,

     PowerBuilder

     "PostCommand": "postcmd.bat /show /async"

     1	"PostCommand": "postcmd.bat /show /async"

   Note: The relative path
   specified in the file is relative to the path of the JSON
   file.

2. Execute the PBAutoBuild210.exe file and the JSON file
   in a command line to automatically build the project. For
   example,

   PowerBuilder

   PBAutoBuild210.exe /f "D:PB2021SalesDemosalesdemo_exe.json" /l Log_PBBuild.log /le Log_PBError.log

   1	PBAutoBuild210.exe /f "D:PB2021SalesDemosalesdemo_exe.json" /l Log_PBBuild.log /le Log_PBError.log

   The PBAutoBuild210.exe file
   supports the following parameters:

   • /f — specify the configuration file. The configuration
     file (in JSON format) can be directly exported from the
     PowerBuilder IDE, as described in step 1.

     PowerBuilder

     PBAutoBuild210 /f D:PB2021SalesDemosalesdemo_exe.json

     1	PBAutoBuild210 /f D:PB2021SalesDemosalesdemo_exe.json

   • /l — write the logging information to a file.

   • /le — write the error information to a file. For
     example,

     PowerBuilder

     PBAutoBuild210 /f D:PB2021SalesDemosalesdemo_exe.json /l Log_PBBuild.log /le Log_PBError.log

     1	PBAutoBuild210 /f D:PB2021SalesDemosalesdemo_exe.json /l Log_PBBuild.log /le Log_PBError.log

     The relative path specified in the parameter is relative
     to the path of the configuration file. In the above example,
     the log files will be generated under the same path as the
     configuration file.

   • /p — specify the password for logging into SVN or Git.
     This will generate an encrypted value based on the password.
     If the password contains the double quotation mark (“), use
     the escape character ” to replace “.

     PowerBuilder

     PBAutoBuild210 /p abcd1234

     1	PBAutoBuild210 /p abcd1234

   • /h or /? — display the help information. For
     example,

     PowerBuilder

     PBAutoBuild210 /h

     1	PBAutoBuild210 /h

Note

The handling of PB.INI is the same in PBAutoBuild and
OrcaScript:

If the application relies on a property in PB.INI to run, for
example, [RichText] PageSizeAsControlSize=1, the user needs to copy
the PB.INI file to the directory where the application executable
resides.

If the compilation of PBAutoBuild or OrcaScript relies on a
property in PB.INI, for example, [PB] DashInIdentifiers=0, the user
needs to copy the PB.INI file to the directory where
PBAutoBuild210.exe or pbc210.exe resides.
