Grouping rows

You can group related rows together and, optionally, calculate
statistics for each group separately. For example, you might want
to group employee information by department and get total salaries
for each department.

How groups are defined

Each group is defined by one or more DataWindow object columns. Each time the
value in a grouping column changes, a break occurs
and a new section begins.

For each group you can:

• Display
  the rows in each section
• Specify the information you want displayed at the
  beginning and end of each section
• Specify page breaks after each break in the data
• Reset the page number after each break

Grouping example

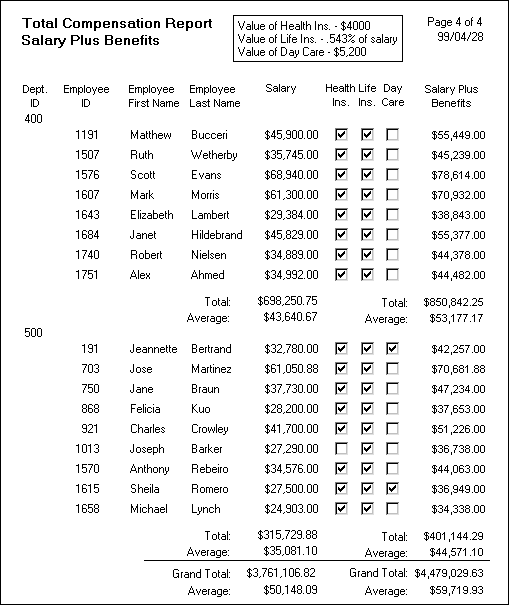

The following DataWindow object retrieves employee information. It
has one group defined, Dept_ID, so it groups rows into
sections according to the value in the Dept_ID column.
In addition, it displays:

• Department
  ID before the first row for that department
• Totals and averages for salary and salary plus benefits
  (a computed column) for each department
• Grand totals for the company at the end

How to do it

You can create a grouped DataWindow object two ways:

• Use the Group presentation style to create a grouped DataWindow object from
  scratch.
• Take an existing tabular DataWindow object and define grouping (“Defining groups in an existing DataWindow object”).

Using the Group presentationstyle

One of the DataWindow object presentation styles, Group, is a shortcut
to creating a grouped DataWindow object. It generates a tabular DataWindow object that
has one group level and some other grouping properties defined. You
can then further customize the DataWindow object.

To create a basic grouped DataWindow object using the
Group presentation style:

1. Select File>New from the menu
   bar.

   The New dialog box displays.

2. Choose the DataWindow tab page and the Group presentation
   style, and click OK.

3. Choose a data source and define the data.

   You are prompted to define the grouping column(s).

4. Drag the column(s) you want to group on from the
   Source Data box to the Columns box.

   Multiple columns and multiple group levels You can specify more than one column but all columns apply
   to group level one. You can define one group level at this point.
   Later you can define additional group levels.

   In the following example, grouping will be by department,
   as specified by the dept_id column:



   If you want to use an expression If you want to use an expression, you can enter an expression
   as the Group Definition on the General page in the Properties view
   after you’ve finished using the Group Wizard. You can specify
   more than one grouping item expression for a group. A break occurs
   whenever the value concatenated from each column/expression
   changes.

5. Click Next.

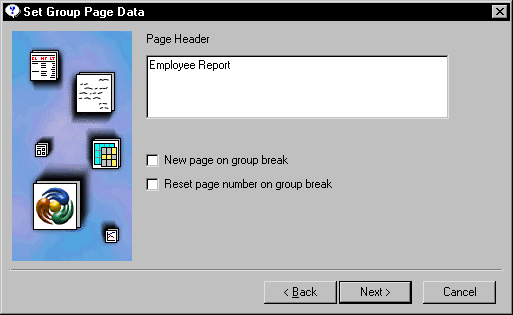

   PowerBuilder suggests a header based on your data source. For
   example, if your data comes from the Employee table, PowerBuilder uses
   the name of the table in the suggested header:



6. Specify the Page Header text.

7. If you want a page break each time a grouping
   value changes, select the New Page On Group Break box.

8. If you want page numbering to restart at 1 each
   time a grouping value changes, select the Reset Page Number On Group
   Break box.

9. Click Next.

10. Select Color and Border settings and click Next.

11. Review your specification and click Finish.

    The DataWindow object displays with the basic grouping properties
    set.

This is an example of a Group style DataWindow object:

What PowerBuilder does

As a result of your specifications, PowerBuilder generates a
tabular DataWindow object and:

• Creates group header and trailer
  bands
• Places the column you chose as the grouping column
  in the group header band
• Sorts the rows by the grouping column
• Places the page header and the date (as a computed
  field) in the header band
• Places the page number and page count (as computed
  fields) in the footer band
• Creates sum computed fields for all numeric columns
  (the fields are placed in the group trailer and summary bands)

Here is the preceding DataWindow object in the Preview view:

What you can do

You can use any of the techniques available in a tabular DataWindow object to modify
and enhance the grouped DataWindow object, such as moving controls, specifying
display formats, and so on. In particular, see “Defining groups in an existing DataWindow object” to learn more
about the bands in a grouped DataWindow object and how to add features
especially suited for grouped DataWindow objects (for example, add a second
group level, define additional summary statistics, and so on).

DataWindow object is not updatable by default When you generate a DataWindow object using the Group presentation
style, PowerBuilder makes it not updatable by default. If you want
to be able to update the database through the grouped DataWindow object,
you need to modify its update characteristics. For more information,
see “Controlling updates “.

Defining groups in an existing DataWindow object

Instead of using the Group presentation style to create a
grouped DataWindow object from scratch, you can take an existing tabular DataWindow object and define
groups in it.

To add grouping to an existing DataWindow object:

1. Start with a tabular DataWindow object that retrieves
   all the columns you need.

2. Specify the grouping columns.

3. Sort the rows.

4. (Optional) Rearrange the DataWindow object.

5. (Optional) Add summary statistics.

6. (Optional) Sort the groups.

Steps 2 through 6 are described below.

Specifying the grouping columns

To specify the grouping columns:

1. In the DataWindow painter, Select Rows>Create
   Group from the menu bar.

   The Specify Group Columns dialog box displays:



2. Specify the group columns, as described in “Using the Group presentation
   style”. Set the Reset
   Page Count and New Page on Group Break properties on the General
   page in the Properties view.

Creating subgroups

After defining your first group, you can define subgroups,
which are groups within the group you just defined.

To define subgroups:

1. Select Rows>Create Group from
   the menu bar and specify the column/expression for the
   subgroup.

2. Repeat step 1 to define additional subgroups if
   you want.

   You can specify as many levels of grouping as you need.

How groups are identified

PowerBuilder assigns each group a number (or level) when you
create the group. The first group you specify becomes group 1, the
primary group. The second group becomes group 2, a subgroup within
group 1, and so on.

For example, say you defined two groups. The first group uses
the dept_id column and the second group uses the status
column.

First group

Second group

The rows will be grouped first by department (group 1). Within
department, rows will be grouped by status (group 2). If you specify
page breaks for the groups, a page break will occur when any of
these values changes.

You use the group’s number to identify it when defining
summary statistics for the group, which is described later in this
chapter.

Sorting the rows

PowerBuilder does not sort the data when it creates a group.
Therefore, if the data source is not sorted, you must sort the data
by the same columns (or expressions) specified for the groups.

For example, if you are grouping by Dept_ID then
Status as shown above, select Rows>Sort from the menu bar
and specify Dept_ID and then Status as sorting columns:

You can also sort on additional rows if you want. For example,
if you want to sort by employee ID within each group, specify Emp_ID
as the third sorting column.

For more information about sorting, see “Sorting rows “.

Rearranging the DataWindow object

When you create a group, PowerBuilder creates two new bands
for each group:

• A group header band
• A group trailer band

The bar identifying the band contains:

• The number of the group
• The name of the band
• The name of each column that defines the group
• An arrow pointing to the band

You can include any control in the DataWindow object (such as columns,
text, and computed fields) in the header and trailer bands of a
group.

Using the group header band

The contents of the group header band display at the top of
each page and after each break in the data.

Typically, you use this band to identify each group. For example,
you might move the grouping column from the detail band to the group
header band, since it now serves to identify one group rather than
each row.

For example, if you group the rows by department and include
the department in the group header, the department will display
before the first line of data each time the department changes.

During execution, you see this:

Using the group trailer band

The contents of the group trailer display after the last row
for each value that causes a break.

In the group trailer band, you specify the information you
want displayed after the last line of identical data for each value
in the group. Typically, you include summary statistics here, as
described next.

Adding summary statistics

One of the advantages of creating a grouped DataWindow object is
that you can have PowerBuilder calculate statistics for each group.
To do that, you place computed fields that reference the group.
Typically, you place these computed fields in the group’s
trailer band.

To add a summary statistic:

1. Select Insert>Control>Computed
   Field from the menu bar.

2. Click in Design view where you want the statistic.

   The Modify Expression dialog box displays:



3. Specify the expression that defines the computed
   field (see below).

4. Click OK.

A shortcut to sum values If you want to sum a numeric column, select the column in
Design view and click the Sum button in the Controls dropdown toolbar.

PowerBuilder automatically places a computed field in the appropriate
band.

Specifying the expression

Typically, you will use aggregate and other functions in your
summary statistic. PowerBuilder lists functions you can use in the
Functions box in the Modify Expression dialog box. When you are
defining a computed field in a group header or trailer band, PowerBuilder automatically
lists forms of the functions that reference the group:

You can paste these templates into the expression, then replace
the #x that is pasted in as the function argument with
the appropriate column or expression.

For example, to count the employees in each department (group
1), specify this expression in the group trailer band:

To get the average salary of employees in a department, specify:

To get the total salary of employees in a department, specify:

During execution, you see this:

Sorting the groups

You can sort the groups in your DataWindow object. For example, in
a DataWindow object showing employee information grouped by department, you
might want to sort the departments (the groups) by total salary.

Typically, this involves aggregate functions, as described
in “Adding summary statistics”.
In the department salary example, you would sort the groups using
the aggregate function Sum to calculate total salary in each department.

To sort the groups:

1. Place the mouse pointer on the group header
   bar (not inside the band) until the pointer becomes a double-headed
   arrow.

2. Click.

   The General property page for the group displays in the Properties
   view.

3. Click the button next to the Group Sort box.



   The Specify Sort Columns dialog box displays.

4. Drag the column you want to sort the groups by
   from the Source Data box into the Columns box.

   If you chose a numeric column, PowerBuilder uses the Sum function
   in the expression; if you chose a non-numeric column, PowerBuilder uses
   the Count function.

   For example, if you chose the Salary column, PowerBuilder specifies
   that the groups will be sorted by the expression sum(salary
   for group 1):



5. Select ascending or descending sort as appropriate.

6. If you want to modify the expression to sort on,
   double-click the column in the Columns box.

   The Modify Expression dialog box displays.

7. Specify the expression to sort on.

   For example, to sort the department group (the first group
   level) on average salary, specify avg(salary for
   group 1):



8. Click OK.

   You return to the Specify Sort Columns dialog box with the
   expression displayed.

9. Click OK.

   During execution, the groups will be sorted on the expression
   you specified.

---
